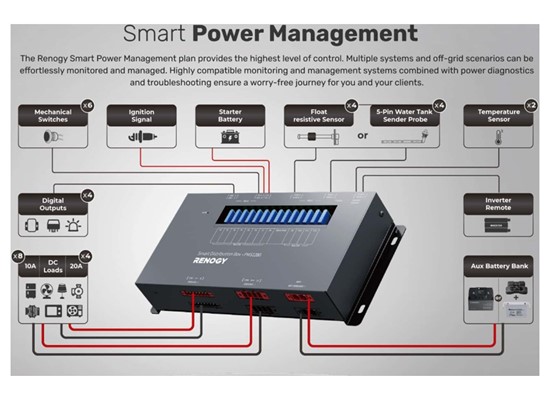

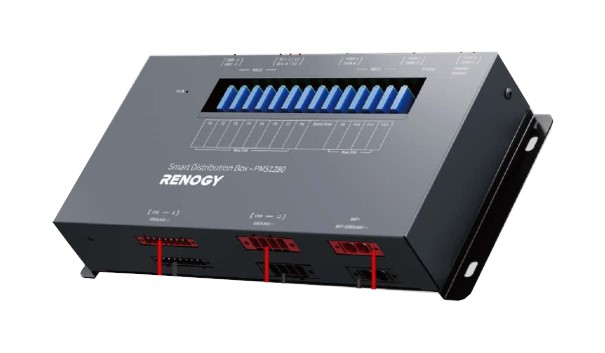

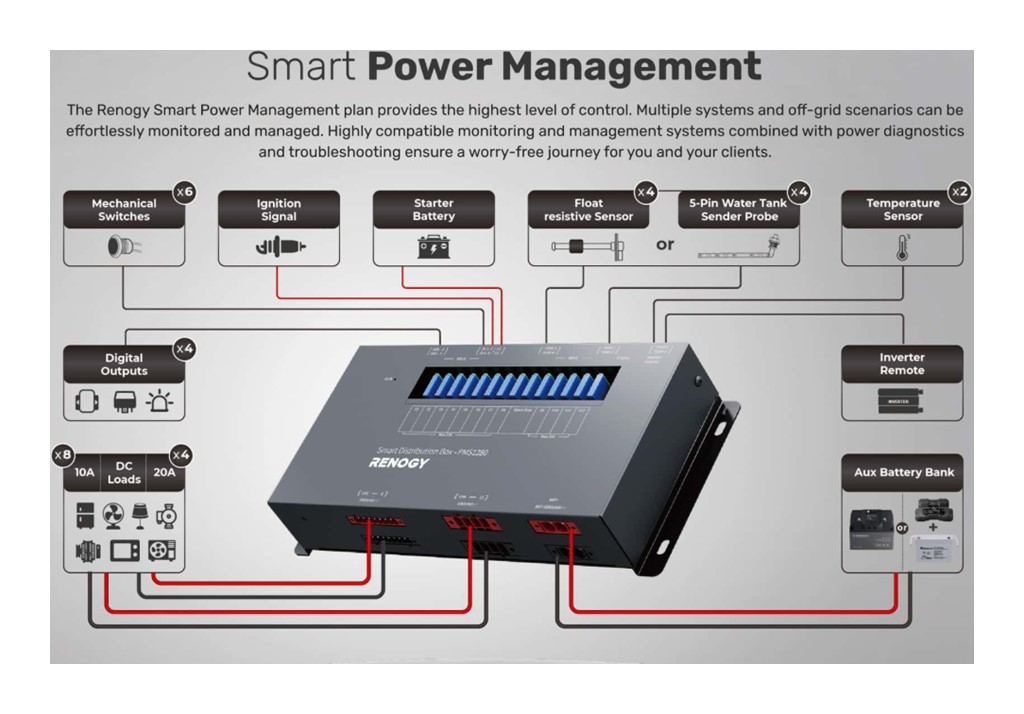

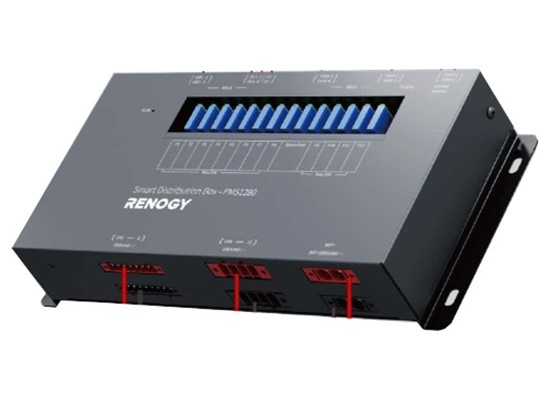

The Smart Distribution Box is a power distribution control device designed for RV and motorhome scenarios. It is compatible with RV-C communication interfaces and supports Renogy ONE Core data display. It integrates functions such as multi-channel water tank and LPG level collection, temperature collection, voltage collection, AC/DC circuit control, and more.


Operating Voltage: 8 ~ 60V DC
Power Consumption: < 1.5W (Standby)
DC Load: 10A × 8 | 20A × 4
Temperature Sensor: 2-Channel, NTC
Voltage Sampling: 2-Channel, 0 ~ 60V DC
Current Sampling: Max. 25A | Sampling Accuracy: ±1%
Dry Contact: Input Signal × 4 | Output Signal × 4
Operating Temperature: -20°C ~ 70°C
Operating Humidity: 0% ~ 95% RH
Dimensions: 356 × 150 × 77 mm
Certifications: FCC, CE, LVD
